Quick Details

  • Condition: New
  • Type: Horizontal
  • CNC or Not: CNC
  • Automatic Grade: Automatic
  • Max. Swing Diameter: 500mm
  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: DMTG
  • Model Number: CNC Lathe CKE6150Z
  • Voltage: 380V or 220V
  • Power(W): 7.5KW
  • Dimension(L*W*H): 2800x1750x1620mm
  • Weight: 2800kgs
  • Certification: CE for cnc lathe
  • After-sales Service Provided: Engineers available to service machinery overseas
  • with FANUC Oi mate TD system: CE electronic components for CNC Lathe
  • Max. length of work piece (mm): 750/1000/1500/2000
  • max. swing over slide of cnc lathe: 280mm
  • X travel(mm) of cnc lathe: 280
  • Z travel of cnc lathe: 680/930/1430/1930
  • Spindle nose of cnc lathe: D8
  • Chuck size (mm) of cnc lathe: 250
  • Taper of spindle bore of cnc lathe: 1:20
  • Certificate of cnc lathe: CE certificate & ISO9001 certificate
  • CNC Lathe Quality Guarantee: Within one year

Packaging & Delivery

Packaging Details In exporting wooden case.
Delivery Time 60 days

CKE6150Z DMTG CNC Lathe Machine Price





Product Description





CNC Control System of CNC Lathe Machine Price

1. FANUC 0i mate TD control system

2. Siemens 802C/828D control system

3. FAGOR 8055i control system

4. GSK control system



( CKE6150Z CNC Lathe Machine )








Main Specification for CNC Lathe Machine Price

ModelCKE6150Z
Max. swing over bed (mm)500
Width of bed400
Max. length of work piece (mm)750/1000/1500/2000
Max. swing over slide (mm)280
X travel (mm)280
Z travel (mm)680/930/1430/1930
Spindle noseD8
Chuck size (mm)250
Taper of spindle bore1:20
Spindle bore (mm)82
Steps of spindle speed3-step actuator (7-135rpm; 30-550rpm; 110-2200rpm )
Frequency conversion motor power (kW)7.5
Rapid traverse X/Z (m/min)41435
Repeatability of tool post (mm)0.008
Vertical 4-position Tool post changing time (s)2.4
Horizontal 6-position Tool post changing time3
Diameter of tailstock quill (mm)75
Travel of tailstock quill (mm)150
Taper of tailstock quillM5
Net weigh (kg)2550/2600/2700/2800
Overall dimensions (mm)2580×1750×1620
2830×1750×1620
3330×1750×1620
3830×1750×1620




Standard Accessories for CNC Lathe Machine Price
Inverter Motor Control Spindle (Automatic changes)
Concentrated Lubrication Device (Can be controlled by Programs)
Headstock Independent Lubricate System
Machine Light
Coolant System
3-jaw chuck
Tool Kit
Oil Gun
90 Degree Movable Control Console
Vertical 4-Station Electric Turret



Optional Accessories for CNC Lathe Machine Price
Servo spindle motor and drive package on cnc lathe model: CKE6150Z
Door interlock
Chuck guard with swith
CE electrics
Horizontal 6-Station Turret
250mm hydraulic chuck (through-hole)
Hydraulic tailstock
Hydraulic station
Steady rest   Dia:30-200mm
Live Center M5
Anti-vibration pads

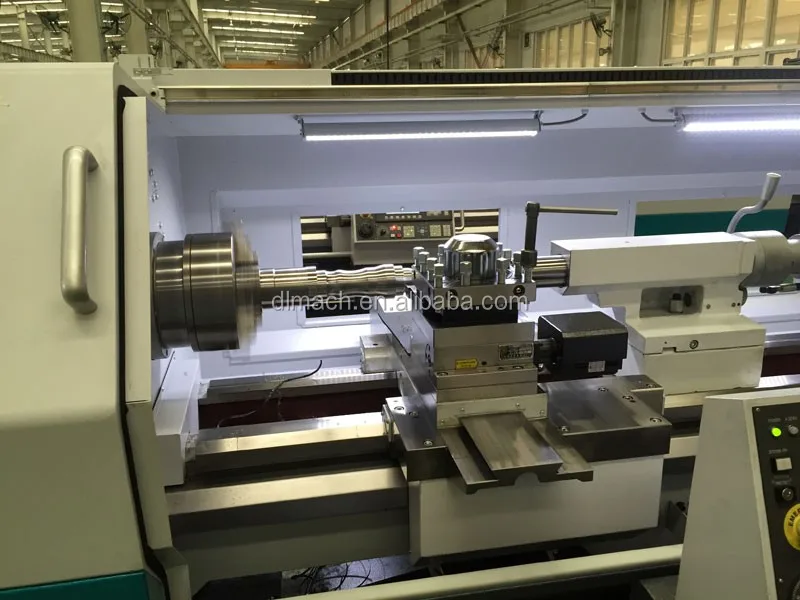

   ( More Detailed Picture of CKE6150Z CNC Lathe Machine )

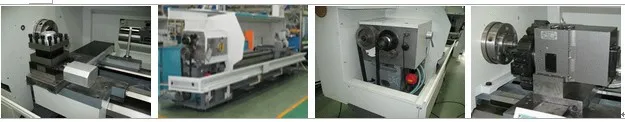

( Detail of CKE6150Z CNC Lathe Machine )




( Fanuc 0i Mate-TD Control System of CKE6150Z CNC Lathe Machine )

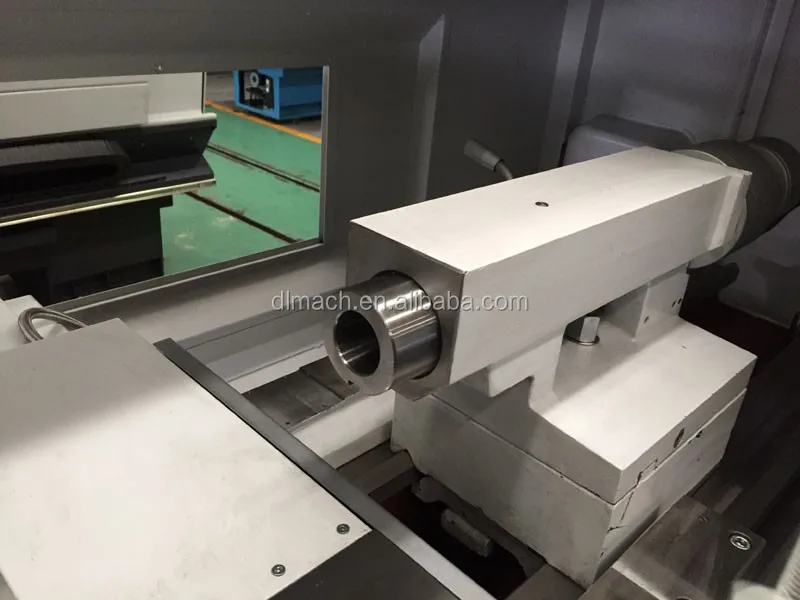

( Hydraulic Tailstock of CKE6150Z CNC Lathe Machine )






Certificate

CE certificate & ISO9001 certificate of cnc lathe machine




Our Services



Quality Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cnc lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the cnc lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the cnc lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the cnc lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the cnc lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.




Company Information



About our company

We have a group of professional engineers in charge of technology, manufacturing, installing, testing of cnc lathe machine. So we can guarantee that our cnc lathe will be runned on good performance based on high quality.



Founded in 1948, Our factory entered the top 8 cnc lathe machine and lathe machine builders in the world. Turly a leader in the cnc lathe machine and lathe machine industry worldwide. Our CNC lathe sell to more than 100 countries and regions worldwide. Our main products are CNC Lathe Machine, Gap-bed Lathe, Universal Lathe, Vertical Machining Centers,etc.















FAQ



Q:Why choose our cnc lathe machine?

A: 1 . High quality with competitive price
     2 . 25 years export experience
     3 . CE,ISO Certificates
     4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
     6 . 12 months quality warranty
     7 . Oversea engineers available for problem resolving

Q:Can we start with small quantity? What's the MOQ?
A:  We can accept orders with any quantity. The MOQ is 1 unit.

Q: Do you have QC or any safety standards for your cnc lathe machine?
A:  yes,we have established a highly strict quality control department to guanrantee good quality.

Q: How can we learn to operate the cnc lathe machine?
A: Operation teaching video and instructions even engineer are available.
