Quick Details

  • Condition: New
  • Type: Horizontal
  • CNC or Not: Normal
  • Automatic Grade: Manual
  • Max. Swing Diameter: 850 mm
  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: MACH
  • Model Number: CWA6185
  • Voltage: 220V/380V
  • Power(W): 15KW
  • Dimension(L*W*H): 8150*1500*1500 mm
  • Weight: 9800kg
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • color: white and blue
  • Spindle bore: 100mm
  • Warranty: 12 Months
  • Machine Type: heavy duty lathe
  • Function: turning
  • Product type: Making Metal Parts
  • Spindle speed: 5 to 630 rpm with 4 steps

Packaging & Delivery

Packaging Details The heavy duty lathe will be packaged in wooden case.
Delivery Time 90 days after receiving the downpayment.

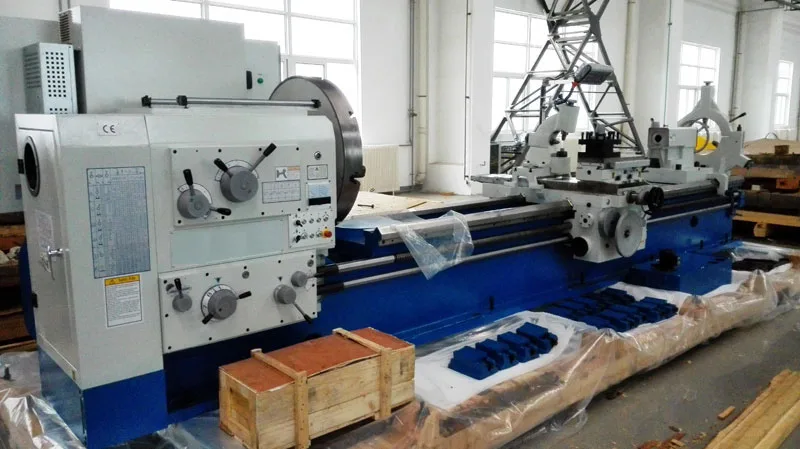

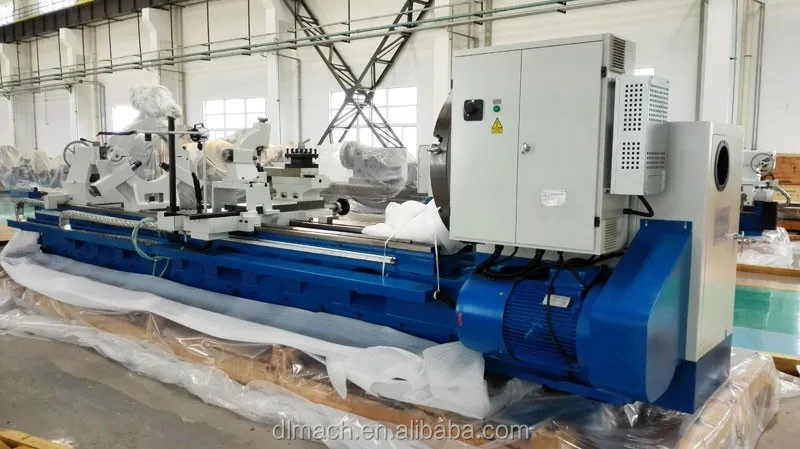

CWA6185 Horizontal Engine Heavy Duty Lathe Machine



Product Description
Main Specifications of Heavy Duty Lathe Machine
MODELCWA6185/6000
Swing over bed850 mm
Max. Swing over carriage520 mm
Distance between centers6000mm
Max. Length to be turned5800 mm
Bedways width600 mm
Max. Supporting weights of centers4000 kg
Spindle noseISO A2-11
Spindle bore100 mm
Spindle speeds5 to 630 rpm with 4 steps
Number of feeds and ranges64
Longitudinal0.08 to 9.6 mm
Cross slide0.04 to 4.9 mm
Compound slide0.02 to 2.4 mm
No. & range of metric threads56 kinds, 1-120 mm
No. & range of inch threads56 kinds, 30-1/4 t.p.i.
No. & range of module threads56 kinds, 0.5-60
No. & range of diametric pitch’s56 kinds, 60-0.5
Dia. Of tailstock sleeve120 mm
Taper of tailstock sleeveMorse no.6
Power of main motor15 kw
Electrical poweras user’s need
Net overall dimension of the machine8150×1500×1500 mm
Packing dimension of the machine8500×1900×1780 mm
N. W. / G. W.98000 /117000 kgs

Standard Accessories of Heavy Duty Lathe Machine
4-Jaw Chuck, Diameter of 800 mm, 1 Set
Steady Rest, Range 40 To 350 mm, 1 Set
Follow Rest, Range 30 To 120 mm, 1 Set
Dead Center, 2 Pcs
Living Center, 1 piece
Center Sleeve, 1 Piece
Coolant System
Work Light
Special Tools

Certificate of Heavy Duty Lathe Machine

Packaging & Shipping

Packaging for Heavy Duty Lathe Machine

The heavy duty lathe will be packaged in wooden cases.



Our Services



Quality Guarantee For Heavy Duty Lathe Machine
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.

  • The heavy duty lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the heavy duty lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the heavy duty lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the heavy duty lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the heavy duty lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.



Company Information



About Our Company

We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our heavy duty lathe will be runned on good performance based on high quality.



Main products of the corporation are Conventional Lathe Machine, CNC Lathe Machine, Heavy Duty Lathe Machine, etc which are sold all over China and exported to over 60 countries and regions in the world.



In 1999 it was certified by ISO9001 quality control system and in 2005 by CE safety norm.





FAQ



Q: Why choose our heavy duty lathe Machine?

A: 1 . High quality with competitive price
     2 . 25 years export experience
     3 . CE,ISO Certificates
     4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
     6 . 12 months quality warranty
     7 . Oversea engineers available for problem resolving

Q: Can we start with small quantity? What's the MOQ?
A:  We can accept orders with any quantity. The MOQ is 1 unit.

Q: Do you have QC or any safety standards for your heavy duty lathe Machine?
A: Yes, we have established a highly strict quality control department to guanrantee good quality.

Q: How can we learn to operate the heavy duty lathe Machine?
A: Operation teaching video and instructions even engineer are available.
