Quick Details

  • Condition: New
  • Type: Horizontal
  • CNC or Not: Normal
  • Automatic Grade: Automatic
  • Max. Swing Diameter: 660mm
  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: MACH
  • Model Number: CS6266B CS6266C
  • Voltage: 220v or 380v
  • Power(W): 7.5Kw
  • Dimension(L*W*H): (2800/3300/3800/4800 )x1150x1880mm
  • Weight: 2800/3000/3200/3500 Kgs
  • Certification: certificado por la CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Voltage/ Frequency: 380V, 50Hz, 3 Phase or 220V, 60Hz, 3 Phase
  • Max.Swing Dia. Over Bed (mm): 660
  • Spindle Bore Diameter (mm): 82 or 105
  • Max.swing dia.over cross slide(mm): 420
  • Max.swing dia.over gap(mm): 870
  • Effective lenght in gap(mm): 240
  • Max.travel of upper toolpost(mm): 145
  • Max.travel of lower toolpost(mm): 310
  • Max.travle of quill(mm): 150
  • Main motor power(KW): 7.5

Packaging & Delivery

Packaging Details In Exporting Fumigated Wooden Case of torno.
Delivery Time Shipped in 45 days after payment

CS6266B CS6266C Horizontal Metal Universal Torno


Product Description

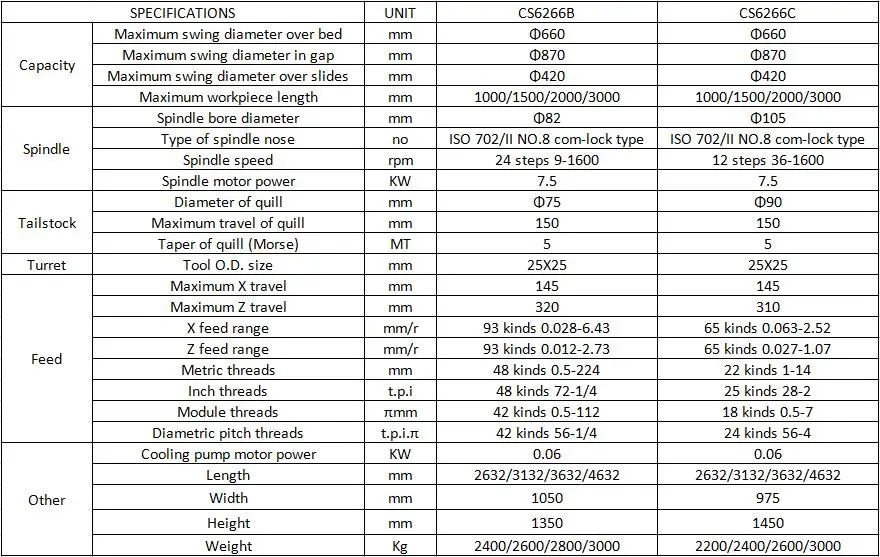

Main Specification for Universal Torno







Note for Torno



1. Metric Version or Inch Version.

2. Voltage/ Frequency: 380V, 50Hz, 3 Phase or 220V, 60Hz, 3 Phase.

3. Colors of Machine Tool: Yellow-Black, Blue-White and Germany Green Colors for your selection.

4. We can supply machine tool with CE electrical components.





















Optional Accessories For Torno



      SINO 2 axis DRO                   Quick Change Tool Post              Thread Chasing Dial                   Live Center            Taper Turning Attachment











Certificate



CE certificate & ISO9001 certificate




Packaging & Shipping

Packing For Torno



Pack the torno in wooden cases.




Our Services



Parts Manual for Torno

We will supply PARTS MANUAL with our torno when shipment. It's convenient for your future maintenance using. It's our ADVTANGES compared with other China suppliers.



Here we send ONE page in our Parts Manual for your reference.









Quality Guarantee For Torno



Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.

  • The tornos are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the tornos are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the tornos were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the torno, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the tornos within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.

Company Information



About Our Company

We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our torno will be runned on good performance based on high quality.



Main products of the corporation are torno, CNC torno, etc which are sold all over China and exported to over 60 countries and regions in the world.



In 1999 it was certified by ISO9001 quality control system and in 2005 by CE safety norm.





FAQ



Q:Why choose our  torno?

A: 1 . High quality with competitive price
     2 . 25 years export experience
     3 . CE,ISO Certificates
     4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
     6 . 12 months quality warranty
     7 . Oversea engineers available for problem resolving

Q:Can we start with small quantity ?What's the MOQ?
A:  We can accept orders with any quantity. The MOQ is 1 unit.

Q: Do you have QC or any safety standards for your torno?
A:  yes,we have established a highly strict quality control department to guanrantee good quality.

Q: How can we learn to operate the torno?
A: Operation teaching video and instructions even engineer are available.
